Latest Generation of Pre-Stretch Film Carriages Maximizes Stretch Wrapping Efficiency

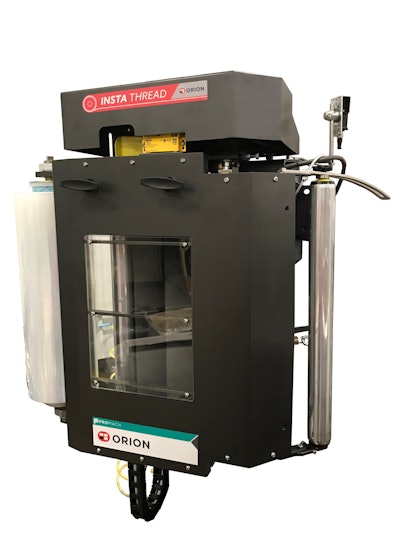

Orion S Carriage Insta Thread Prestretch Film Carriage
Orion Packaging

The tightening of stretch film around a pallet load is the fundamental mechanic achieved from stretch wrapping, whether applied manually or automated. When the film is stretched around a load, the memory of the film wants to return it to its initial form. The film tightens due to this elastic memory as it tries to return. It is this film memory that differentiates stretch film applications from other means of securing unit loads.

Settling of pallet contents that occurs during warehousing and shipment can loosen film applied with more manual methods of unitizing, whereas film memory if sufficiently stretched, takes up the slack and continues to secure the load. The benefits derived from maintaining pallet-load integrity throughout warehousing and distribution, in terms of reduced product damage, uninterrupted throughput of the pallet contents and safety, are self-evident.

Manual stretch wrapping of unit loads can achieve 5-10% of film stretch. Conversely, automated pre-stretching of film permits it to be stretched to a considerably greater degree. Stretch film has evolved to permit up to 300% pre-stretch depending on the stretch wrapping equipment being used, with the potential of reaching up to 600% pre-stretch currently being tested. But, stretch film memory is influenced by the yield point, the amount of stress a material can withstand without permanently having plastic deformation. Prior to reaching the yield point the film will elastically deform, but will return to its original shape once the stress is removed.

Another factor influenced by stretching is the film’s tensile strength, a measurement of the maximum amount of force a material can take without breaking. The greater the tensile stretch measurement, the stronger the film. As the film is stretched below the breaking point, the tensile strength increases, which will reduce shipping damages and increase load stabilization. It is important for a stretch film to have adequate tensile strength for the load it is securing.

Automated pre-stretching of film has direct implications for maintaining pre-determined and consistent stretch wrapping parameters for pallet integrity, while greatly increasing the number of pallets that can be wrapped from a given volume of film when compared to manual pallet wrapping applications. It can increase film strength, improve load integrity, reduce the amount of stretch wrap film needed and save on stretch film packaging costs.

Automated pre-stretch

Today, stretch films are designed to achieve optimal pre-stretching values that can be attained with high-performance stretch wrap machines. In automated pre-stretch, the film threads past two rollers – the second roller’s rotational speed is faster than the first, thus stretching the film between the two. But, how these rollers are positioned and contact the film have a direct impact on the quality of the stretch being applied to the load.

The more contact the rollers have with the film will increase their grip and hold on the film. Most W-pattern and U-pattern design of pre-stretch carriages will deliver about 90 degrees of contact with the film. Whereas an S-pattern design will exert approximately 180 degrees of film contact.

The S pattern design routes the film around the front of the first pre-stretch roller, then around the back of the second pre-stretch roller, dramatically reducing the distance between rollers where the film is actually stretched. More film contact means more control over the film being stretched, resulting in a more uniform stretch being applied to the load.

Likewise, 180-degree film contact gives more consistent and accurate pre-stretch, which means less slip due to increased surface contact. The distance between the pre-stretch rollers affects neckdown. Neckdown reduces the width of the film being applied, and therefore, reduces the coverage a revolution of stretch film provides, increasing the number of revolutions required to wrap a pallet.

A standard 20-inch roll of stretch film being applied through a W-pattern and U-pattern pre-stretch carriage will lose 15% of its width (3 inches) when applied to a pallet due to film neckdown. An S-pattern design with 180-degree, directly adjacent pre-stretch rollers will reduce film neckdown to 10% (2 inches), a one-third reduction in neckdown and a 5% increase in film width coverage per stretch.

Latest generation of automated pre-stretch carriages

The latest generation of automated pre-stretch carriages with 180-degree S-pattern roller design is capable of providing up to 300% pre-stretch with minimized neckdown. This exceeds the conventional 200% pre-stretch found in most carriages.

S-pattern pre-stretch carriages typically require the operator to weave the film into the rollers to set-up the machine for proper 180-degree contact. It is always a potential safety risk when fingers are inserted into automated machinery components. This new S-Carriage design bypasses this risk by eliminating the need to thread the film through the rollers. The operator simply pulls the film through and closes the film carriage door, without touching the rollers, making film changeover safer and quicker.

This new generation of film pre-stretch carriages is equipped with digital and cloud-based connectivity via HMI touchscreen. Each wrap can be set up with programmed passcode-protected recipes to ensure consistent film is being applied per pre-set parameters. The HMI is recording multiple data sets on each wrap cycle, which can be available in real-time via the cloud for review by plant management.

Supporting end-of-line productivity

The latest technology in pre-stretch film carriages has contributed to making automated stretch wrapping of pallet loads more effective and cost efficient by better managing film usage.

These new-generation systems have evolved pre-stretch technology to a level of exceptionally high precision through years of practical end-of-line applications in numerous industries. They incorporate the necessary automation that enable companies to achieve more productivity, increased versatility in application, decreased product damage and realize a more profitable bottom line.
